Elevator Display PCB shows the situation / information when elevator is working up/down
Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.
Elevator Display Specication
Monarch Display MCTC-DCB-T080
Wide-screen 8-inch TFT LCD display, high-resolution, large display area
Picture size, color, display content, and arrow allowing edition to meet different
customer requirements
■ Display: Horizontal/Vertical, in Chinese/English, resolution 800 x 480
■ Resolution: 1024 x 768
■ Physical dimensions: as drawing, display area: as drawing mm
■ Communication: RS485, power supply: 24 VDC
■ 56 floors supported, elevator lock, fire emergency, inspection, and full
load display
■ Picture update tool: picture editing software and ordinary USB disk,
background picture, display content, and arrow allowing edition
■ Integrated black cover, easy installation

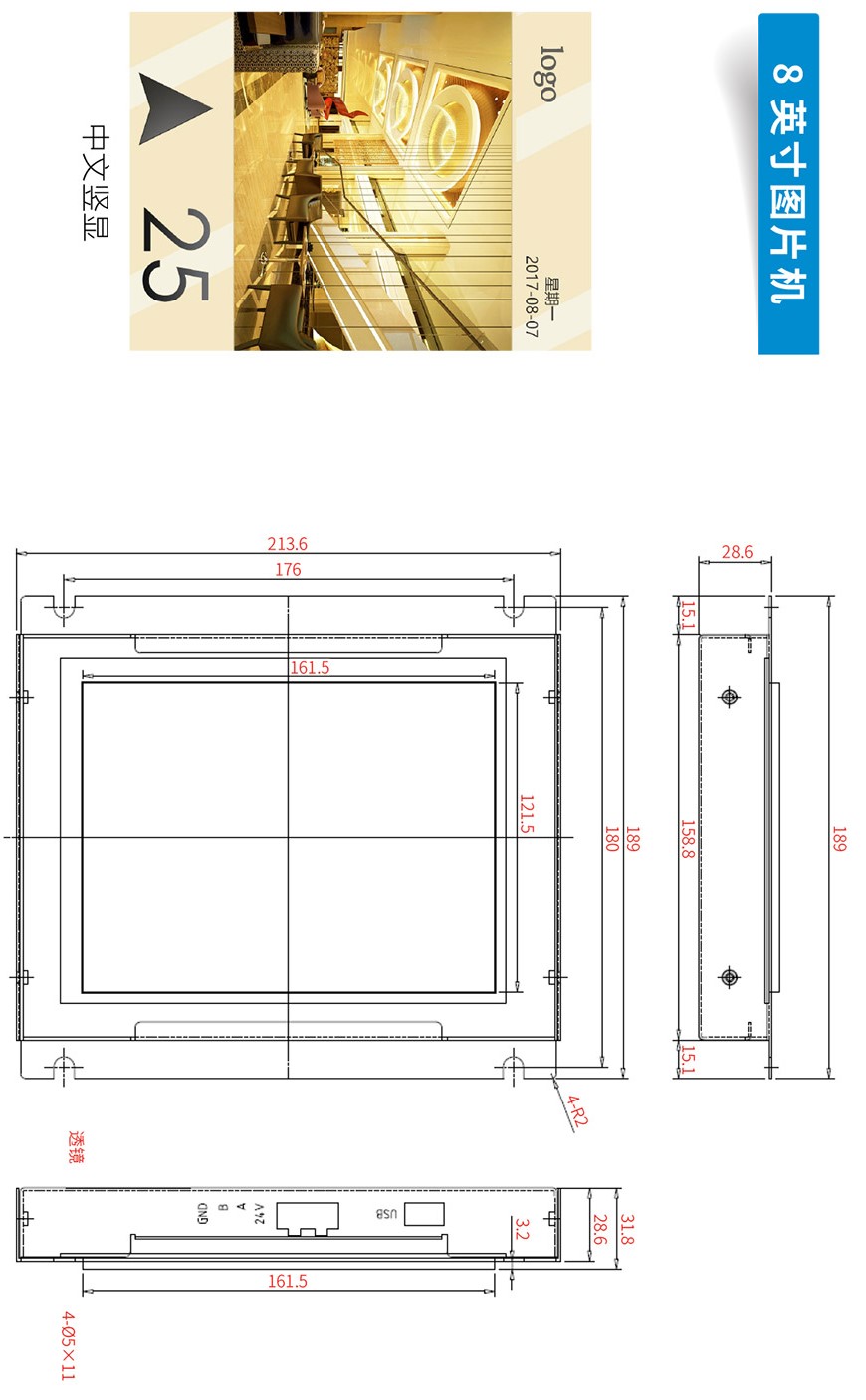

■ Physical Appearance and Dimensions
